Smart Motor Control and Protection Solution

Application

The motor is an important asset of the enterprise .It is necessary to monitor the running status and the efficiency of the motor, and protect the motor. ARD series smart motor protector is used for 660V low-voltage motor circuits with protection, measurement, control, communication, operation and maintance function,can realize multiple starting schemes to ensure the safe operation of the motor. It can be connected to the intelligent MCC or DCS production system. It is widely used in Chemical Industry、Power Plant、Pump Station、Mining Industry、Metallurgical Industry and so on.

Structure

Main Functions

Start timeout

Overload

Underload

Short circuit

Blocking

Stall

Unbalance

External Fault

Insulation Fault

OverVoltage

Undervoltage

Phase Failure

Phase Sequence

OverPower

UnderPower

tE time

Loss of pressure (anti-shake)

4-20mA input protection

Ground

Leakage

Communication

Modbsu-RTU

Modbus-TCP

Profibus-DP

Profinet

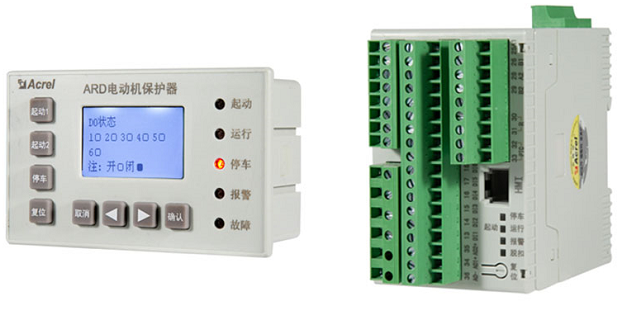

Acrel-2000M

ARD2		ARD3
ALP300		ARD3T
ARD2F		ARD3M

Product Selection

Function		ARD2/ ARD2L	ALP300	ARD2F	ARD3	ARD3T	ARD3M
Application		Low voltage 0.4kv-1.14kv motor protection
Protective function	Start timeout	√
	Overload	√
	Underload	√
	Short circuit	√
	Blocking	√
	Stall	√
	Unbalance	√
	External Fault	■	■	■	√	√	√
	Insulation Fault						√
	OverVoltage		√	■	■	■	√
	Undervoltage		√	■	■	■	√
	Phase Failure	√	√	√	√	√	√
	Phase Sequence			■	■	■	√
	OverPower			■	■	■	√
	UnderPower			■	■	■	√
	tE time			■	■	■	√
	Loss of pressure (anti-shake)			■	■	■	■
	4-20mA input protection					■
	Ground	√
	Leakage	■
Communication function	ModbusRTU	■	■	■	■	√
	Double ModbusRTU			■	■	■	√
	Profibus DP			■	■	■	■
	Doubel Profibus DP						■
	Profinet						■
	Modbus TCP						■
Switch input		2	2	9	9	8	10
Relay output		4	4	5	5	7	6
Start control				■	√	√	√
4-20mA analog output		■
Record		■		■	■	√	■
Operational information record						√	√
Logic function						√	√
Parameter measurement	Three-phase current	√
	Leakage current	■
	Three-phase voltage			■	■	■	√
	Power, power factor			■	■	■	√
	Frequency			√	√	√	√
	Electric energy			■	■	■	√
	PTC/NTC			■	■	√	√
	4-20mA input					■
	Temperature measurement module					■
