Energy management System

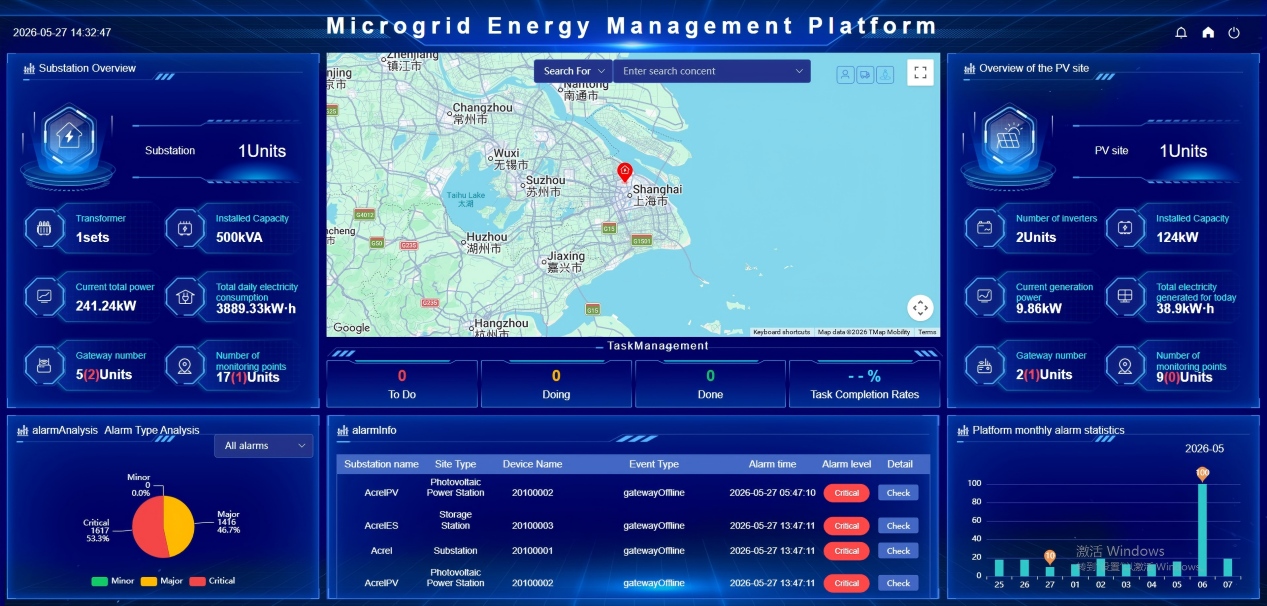

Overview of Energy Consumption
Statistics of Energy Consumption

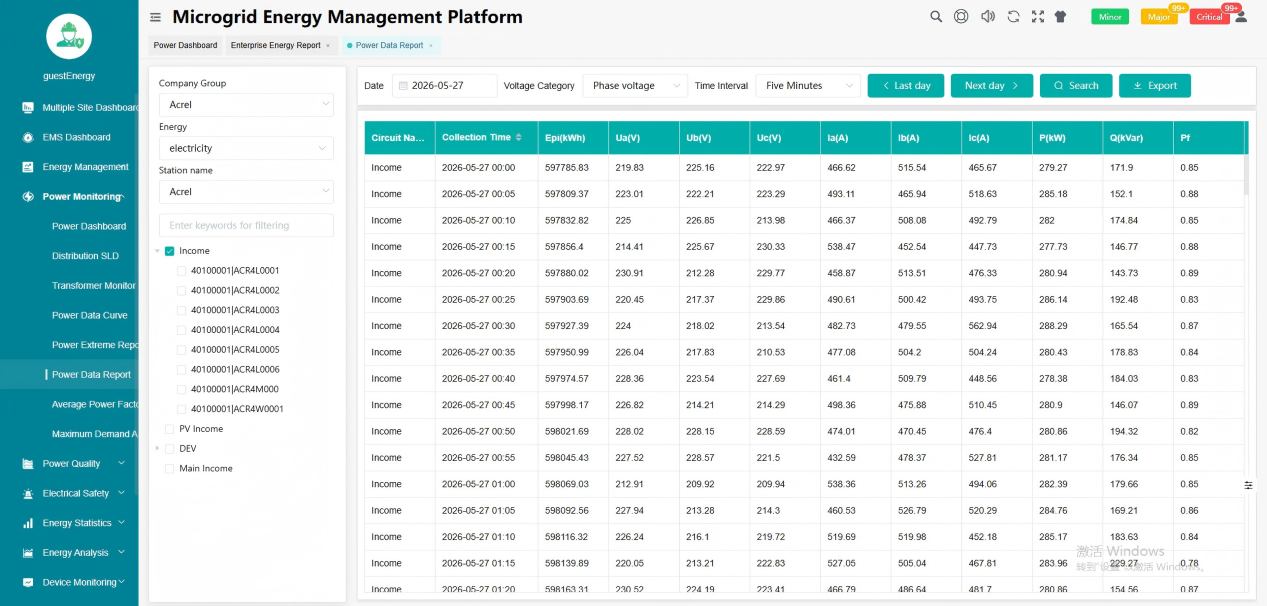

Data Reading

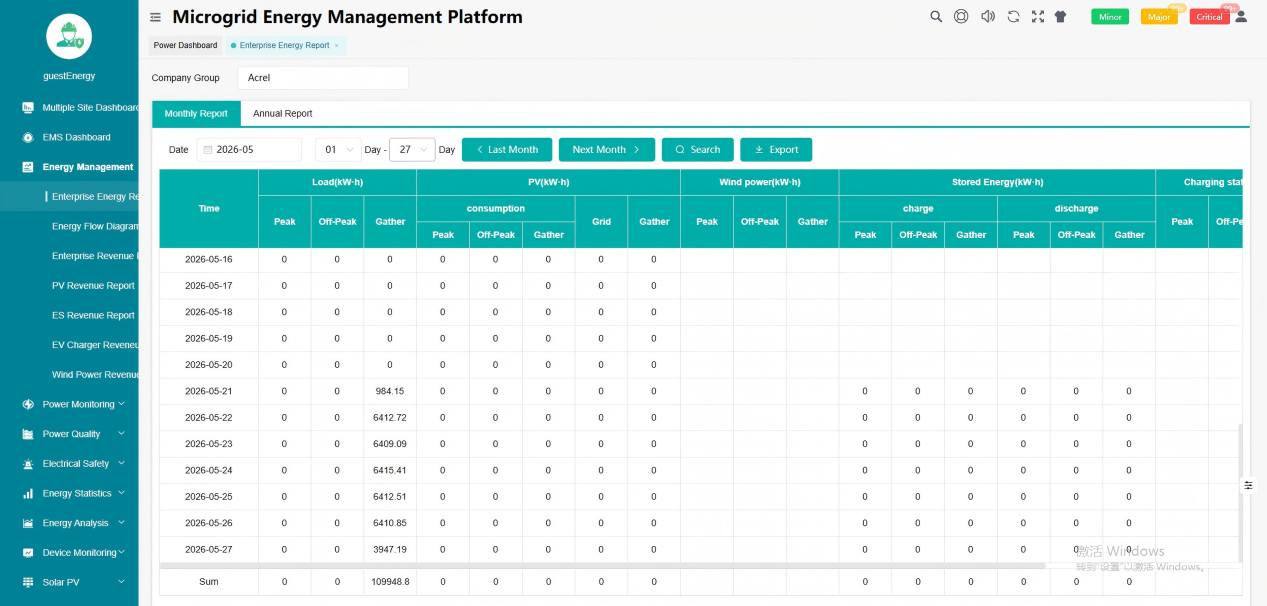

Analysis Report on Energy Consumption
| Application | Type | Function | |
| Gateway | AWT100 | Ethernet Gateway， For simple, cost-effective serial-to-Ethernet connectivity |
|
| Anet |
Smart IoT Gateway，Embedded Linux platform, high performance, low power consumption, real-time monitoring, Convenient management |
||
| Advanced power quality analysis | APQM-E | Advanced power quality analysis and revenue-accurate | |
|
Energy mete |
AMC96L-E4 |
Installation:panel mounted I,U,F,P,Q,S,PF,E; Standard RS485 port and Modbus/p> RTU protocol/p> |
|
|
|
APM810 |
Installation:panel mounted I,U,F,P,Q,S,PF,E; Standard RS485 port and Modbus RTU protocol 2xDI, 2xDO Power quality Demand |
|
| ADL10 |
DIN rail mount I,U,F,P,Q,S,PF,E; 63A direct current input 8-digit LCD Display Standard RS485 port and Modbus RTU protocol |
||
|
|
ADL100-ET |
DIN rail mount I,U,F,P,Q,S,PF,E; 63A direct current input 8-digit LCD Display Standard RS485 port and Modbus RTU protocol |
|
| ADL200 |
DIN rail mount I,U,F,P,Q,S,PF,E; 80A direct current input 8-digit LCD Display Standard RS485 port and Modbus RTU protocol |
||
| ADL400 |
DIN rail mount I,U,F,P,Q,S,PF,E; 80A Direct Input or 5A CT Input 8-digit LCD Display Power quality monitoring Standard RS485 port and Modbus RTU protocol |
||
|
|
ADL3000-E |
DIN rail mount I,U,F,P,Q,S,PF,E; 80A Direct Input or 5A CT Input 8-digit LCD Display Power quality monitoring Standard RS485 port and Modbus RTU protocol |
|
| ADF400L |
DIN rail mount 36 circuits single phase 80A direct input Or 12 circuits 3 phase 80A direct input Or 12 circuits 3 phase 5A CT Input I,U,F,P,Q,S,PF,E; Standard RS485 port and Modbus RTU protocol |
||
