PV Inverter Energy Meter，ACR10R-DxxTE4
PV Inverter Energy Meter，ACR10R-DxxTE4

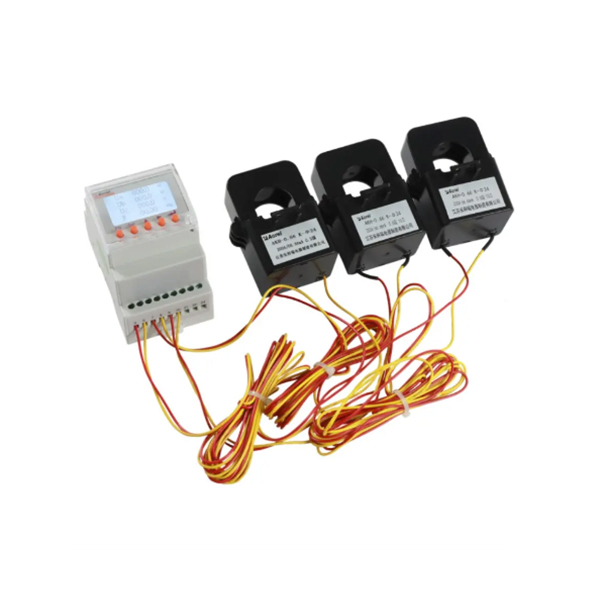

The rail-type multifunction electrical instrument with external Rogowski coil and split-core current transformer is applicable for the energy-saving reconstruction project in high energy consumption industries including the smelting, iron and steel, welding and semi-conductor industry. It is also suitable for applications such as the power monitoring of grid-connected cabinet for distributed photovoltaic power cabinet and energy demand management. It boasts of no need of bus removal, easy connection and safe construction, saving reconstruction cost and raising efficiency for the user. It integrates the measurements of all electric parameters (including single-phase or three-phase current, voltage, active power, reactive power, apparent power, frequency and power factor）and comprehensive energy monitoring and examination management. Meanwhile, it also has various peripheral interfaces for the user to choose: the RS485 communication interface with MODBUS-RTU protocol can meet the need of online communication management; the interfaces with switch input and relay output can realize the remote signalling and remote control of the circuit breaker switch. It is very suitable for real-time power monitoring system with an LCD display and the panel buttons to realize the setting and control of parameters.
5.1 Overall and Installation Dimensions (Unit: mm)
5.2 Open Current Transformer’s Dimension (Unit: mm)
(Note: The connection diagram on the instrument housing shall prevail in case of any discrepancies with it)
According to different design requirements, it is recommended to add fuses to the power and voltage input terminals to meet the safety requirements of the relevant electrical codes
Function
| Function/Model | ACR10RH-DxxT(R)E4 ACR10RH-DxxT(R)E3 | |
| Display mode | LCD（Field LCD） | ■ |
| Measuring parameter | Current/voltage/frequency/power facto | ■ |
| Active power/reactive power/apparent power | ■ | |
| Four quadrant electric energy measurement | ■ | |
| Maximum demand | □ | |
| Multiple rate electric energy measurement | □ | |
| Power quality monitoring | Total harmonic content | ■ |
| subharmonic（2-31 times） | ■ | |
| Data logging | Incident record | □ |
| Display mode | Alarm | □ |
| Built-in clock | □ | |
| Communication | RS485 interface | ■ |
| Optional function (choose one) | J（2DO） | A1+（B1 or C1）(4DI+2DO or 4DI+EP)* |
| K（4DI） | ||
| pulse（2channels） | ||
Note:
1、“■”is standard allocation function，“□”is matching function，Above instrument stanfard 1 channel RS485 communication；
2、Terminal connection mode corresponding to A1/B1/C1 and so on in selection function；
3、Pulse output and relay output can not be selected at the same time;
4、When you select an event loggong feature,you must configure the DI or DO
Technical parameter
| Technical parameters | Indicators | |||
| Input | Net work | 3-phase 3-wire,3-phase 4 wire | ||
| Frequency | 45～65Hz | |||
| Voltage | Rating：AC 57.7V/100V(100V)、220V/380V(400V) | |||
| Overload:1.2-fold rating(continuous);2-fold rating/1second | ||||
| Consumption:<0.2VA | ||||
| Current | Rating： 80A，120A，200A .etc（See specific product specifications,special parameters can be customized） | |||
| Overload:1.2-fold rating(continuous);10-fold rating/1 second | ||||
| Consumption:＜ 0.2VA | ||||
| Output | Electric energy | Output mode:Open-collector photocoupler pulse,two way output | ||
| Three-phase | Pulse constant:4000、8000imp/kWh | |||
| Communication | RS485 interface,Modbus-RTU Protocol | |||
| Display mode | LCD | |||
| Function | Switching | Input | Four way dry contact input | |
| Output | Output mode: two way relay nO contact output | |||
| Contact capacity：AC 250V/3A、DC 30V/3A | ||||
| Measuring accuracy | Frequency0.05Hz、reactive electric energy1class、other 0.5class | |||
| Power supply | AC85～265V or DC100～350V；DC24V（±10%）；DC48V（±10%）Consumption≤10VA | |||
| Safety | Power-frequency withstand voltage | Power frequency withstand voltage between Auxiliary power and switch volume output and current input and voltage input and communication and pulse output and switch volume input terminal is AC2kV 1min；Power frequency withstand voltage between auxiliary power and switch volume output and current input voltage input terminal is AC 2kV/1min;Power frequency withstand voltage between communication and pulse output and switch volume input terminal is AC 1kV/1min; | ||
| Insulation resistance | Input,Output terminal to housing>100MΩ | |||
| Environment | Working temperature：-10℃～+55℃；Storage temperature：-20℃～+70℃Relative humidity：5%～95% No condensation；Altitude：≤2500m | |||
