ARTM Multi Channel Temperature Controller,ARTM-8

● 2 Alarm relays；

● LED display;

● 8 PT100 measurement;

● 1 RS485 serial communication, Modbus-RTU;

● Auxiliary power supply adapts with AC220V, DC220V, DC110V;

Send email to us Download The Manual

Product Detail

Parameters

Download

Manual of ARTM-P8

Overview

ARTM series multi-input temperature controller can measure and control multi temperature signals. It is mainly applied to temperature survey and control in thermal power plant and water power plant.

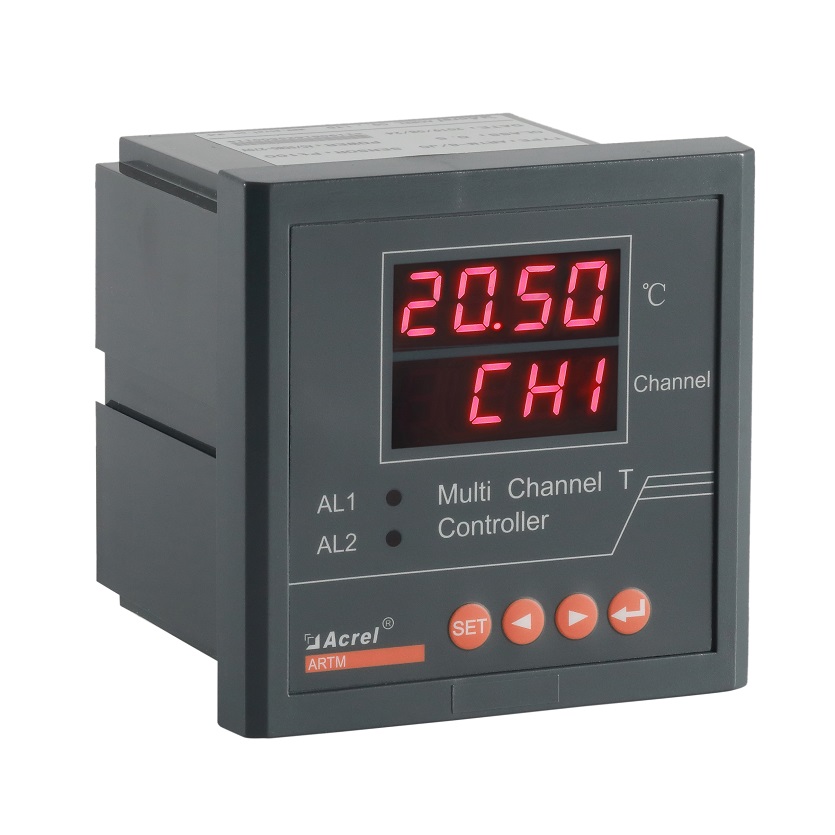

Display

Appearance

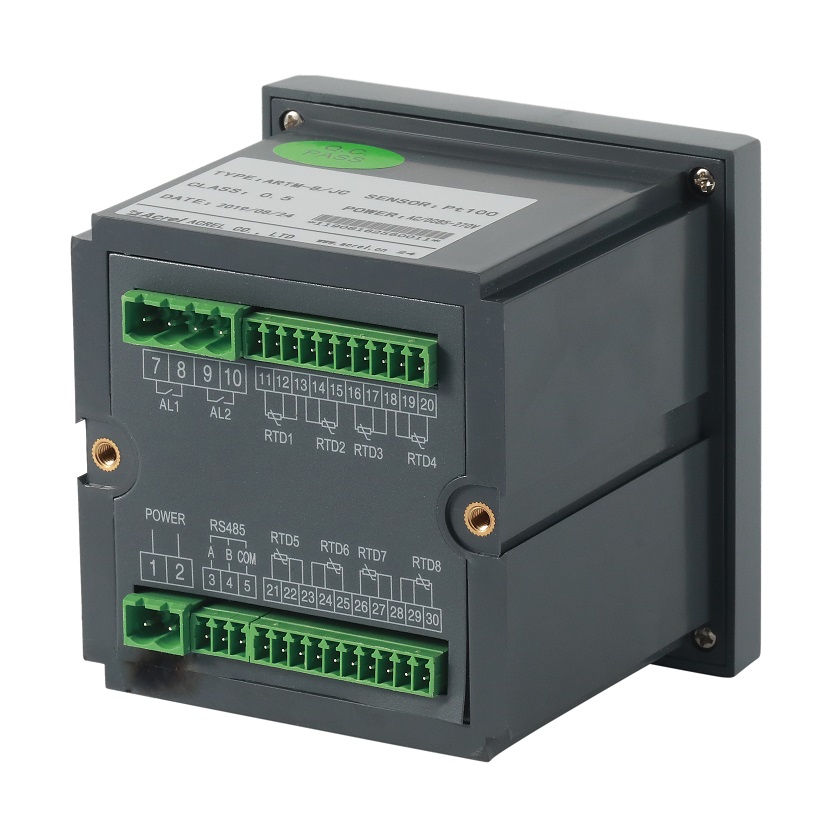

Wiring

Typical connection

Technical FeaturesFunction	Features
Technical FeaturesFunction	ARTM8
Channels	8
Inputs	Thermal resistance: Pt100

Accuracy			0.5s
Power	supply	Voltage	AC85~265V， DC 100~350V
		Consumption	≤2W
Alarm		Channels	2	groups normally open
		Capacity	AC250V/5A， DC30V/5A
Communication		Protocol	MODBUS-RTU
		Interface	RS485
		Speed	1200， 2400， 4800， 9600， 192001200， 2400， 4800， 9600， 19200
Isolation			2kV/1min Ac effective value
Environment		Temperature	Working: -10~+55C, Storage: -25~+70C
		Humidity	≤95%, No dew, no corrosive gas place
		Altitude	≤2000m
