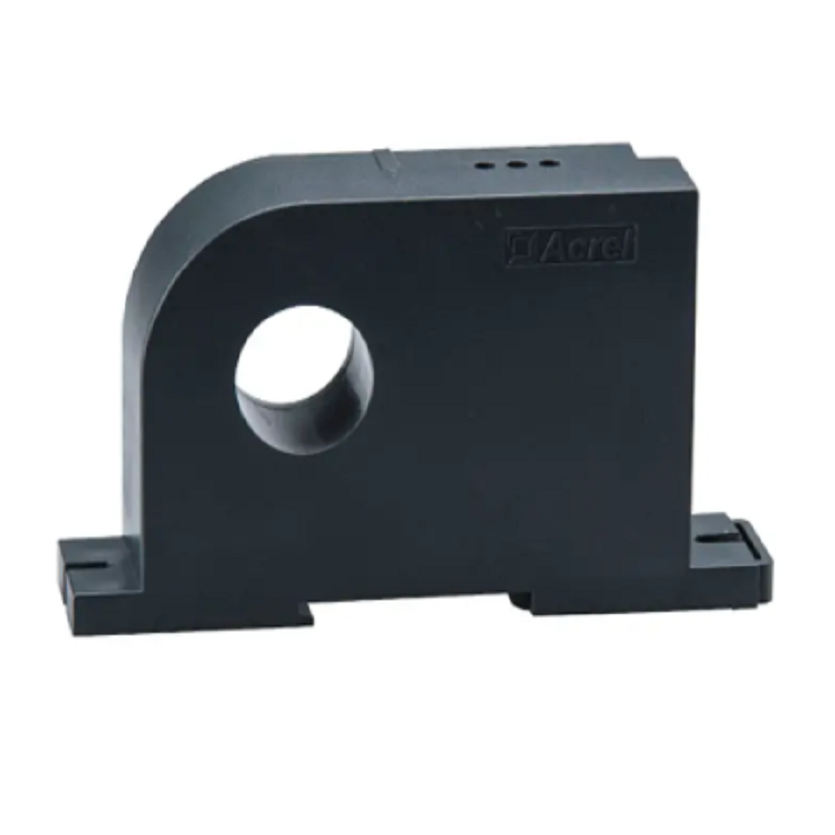

AC 0-200A Current Transducer， BA20-AI-I BA20-AI-V
AC 0-200A Current Transducer， BA20-AI-I BA20-AI-V
BA series AC current transducers apply the principle of electromagnetic induction to measure the AC in the power grid in real time, and adopt precise constant current technology and linear temperature compensation technology to isolate and convert it into standard DC signal output. These AC current transducers are powered by 24v or 12v safe voltage.
Differential Technical Specification
| Model Name |
Input | Output | Perforation Hole Size(mm) |
|
| AC Current | DC Current | DC Voltage | ||
| BA05-AI/I |
0~(0.5~10)A | 4~20mA/0~20mA | / | φ5 |
| BA05-AI/V |
0~(0.5~10)A | / | 1~5V/0~5V | |
| BA10-AI/I |
0~(8~50)A | 4~20mA/0~20mA | / | φ10 |
| BA10-AI/V |
0~(8~50)A | / | 1~5V/0~5V | |
| BA20-AI/I |
0~(40~200)A | 4~20mA/0~20mA | / | φ20 |
| BA20-AI/V |
0~(40~200)A | / | 1~5V/0~5V | |
| BA50-AI/I |
0~(60~600)A | 4~20mA/0~20mA | / | φ50 |
| BA50-AI/V |
0~(60~600)A | / | 1~5V/0~5V | |
| BA50L-AI/I |
0~(0.1~1)A | 4~20mA/0~20mA | / | |
| BA50L-AI/V |
0~(0.1~1)A | / | 1~5V/0~5V | |
General Technical Specification
| Item |
Description |
| Auxiliary Power Supply | DC 12V (range of 10~15V) or DC 24V (range of 18~30V) |
| Accuracy Class |
0.5% |
| Load Resistance (Output) |
Current Output: ≤500Ω; Voltage Output: ≤1000Ω |
| Response Time |
≤350ms |
| Temperature |
Operation Temp.: -10℃~+55℃; Storage Temp.: -40℃~+80℃ |
| Temperature Coefiicient |
≤200ppm/℃ |
| Humidity | ≤90% |
| Altitude |
≤2500m |
| Installation |
35mm DIN Rail or Screw fixed |
| Standard | CE/TüV |
